Battery Back up IP65 Li

• Overview
• Product Description
• Wiring Diagram
• Measure
• Features
• Installation Instructions
• Application
• Packaging & Shipping
• Product Line

Overview

Basic Info.

Model NO.	MF-188G-EM30B
Input Voltage	100~277VAC, 50/60Hz
Input Current	100mA Max.
Charging Current	0-350mA .
IP Rating	IP 65
Case Temperature	to 60ºC Max.
Power Factor	>0.5
Emergency Output Voltage	DC100-260V, DC300V Max.
Charging Power	5.0W Max.
Working Environment	0 to 60ºC
Charging Time	≥24hours
Emergency Output Current	58-150mA/ 75-200mA/115-300mA
Discharging Time&Power	5W 3h
Battery Data	Li-ion 2.6ah 7.4V
Transport Package	Carton
Specification	L275*W88*H88mm
Trademark	MF
Origin	China
HS Code	9405429000
Production Capacity	5, 000PCS/Month

Product Description

Battery Back Up IP65 Li-ion 5.2Ah 7.4V Chargeable Driver 10W 3H Self-detect LED Emergency Driver Power Supply Emergency Conversion Kit for High Bay Light

descriptions:

self-detect
constant power emergency output
apply to constant current driver external lighting products
LiFePO4 using together
battery: over-charge/discharge protection and short circuit protection
working environment: temp.: 0 to 60°C
IP65 standard
not suitable for high risk lighting environment
Accessories: integrated waterproof button and indicator light, remote control
3years warranty

Application:
school,hospital,subway,train station,shoppingmall,supermarket,airport,office, factory,hotel,basement,parking lot,public place

FAQ:
Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.

Q2: Can I order a sample of the LED Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.

Q3: What is the lead time for the LED Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.

Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Q5: Can I print my logo on the LED Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.

Q6: How do I proceed with an order for the LED Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.

Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.

Product Description

EMERGENCY LED DRIVER FOR UFO HIGH BAY LIGHT

The battery is built-in and can be matched with ternary lithium batteries or lithium iron phosphate batteries. Input: AC220-240V, 50-60Hz. Output: DC20- 260V. It is suitable for indoor and outdoor hanging lamps such as industrial and mining lamps and UFO lamps with an external driver output current ≤ 3A (for detailed parameters.

Have authorized CE certificate With infra red wireless remote control
Constant power output High voltage output
Charging and dis-charging protection function and over heat temp. protection
Mock-up electricity pause emergency testing function Can be power off under emergency status
Indication light: city grid electricity Seasonal self detect function
Protection functions: over voltage, short circuit, over load and open circuit
Metallic housing, comply EMC, FCC and C-tick ordinances IP grade: IP65

Input voltage	100-277 Vac 50/60Hz
Input current	0.003A Max.@230Vac
Input wattage	<5.0W
Power factor	≥0.5@230 Vac
Battery charging current	350mA Max.
Battery charging time	≤24h Max.
Emergency output Voltage	DC100-260V,DC300V Max.
Emergency power	30W/20W/15W
Emergency time	1.5H/2H/3H
Battery	Li-Fep04327006000mAh-9.6V
Storage Temperature	-20-40ºC
Electric Strength	3000Vac 5mA(input to output)
IP Rating	IP65
Maximum shell temperature	75ºC
Warranty	3 Years
Relevant standard	IEC61347-2-7/IEC61347-1/EN55015

Wiring Diagram

Measure

Features

LED indicator:
Green breathing pattern: charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second: Load failure during emergency mode, open circuit/short circuit
Green flashing: Emergency status one per second

Remote control:
1: 0S < Key ON ≤1S, Enter a simulated state of emergency, the green indicator blinks once every second
2: 0S < Key OFF ≤1S, In simulated emergency situations, return to the normal charging state
3: 0S < Key OFF ≤1S, In the emergency state, the emergency state is turned off.

Self-test:
When emergency driver is on power, every 180 days ±1 day automatically enter the emergency state, emergency duration until the battery is discharged, then return to power-on status.

Installation Instructions

1:If it is used for the first time or it does not enter the normal working state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided
2:When installing and using it, please keep it away from heat sources and only use it within a certain working temperature range.
3:Should be stored in a cool, dry environment.
4:After prolonged storage, recharge at least once every 6 months as needed.

5:Emergency driver testing must be longer than 1min, don't press the testing button frequently.

Application

Packaging & Shipping

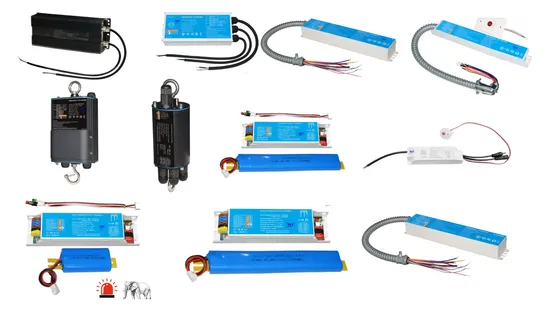

Product Line
